Puddle Plate Waterproofing Barrier
The plate interrupts water tracking along the outside of the pipe within the concrete section.
Coordinate the embedded water stop with the complete waterproofing system

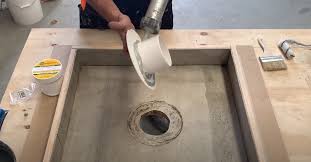

Puddle Flange Waterproofing for Pipe Penetrations
Puddle Flange Waterproofing helps control water migration where pipes cross concrete walls, slabs and tanks. First, define the water exposure and pipe; then, coordinate the plate, concrete, membranes, joints and inspection.
How Puddle Flange Waterproofing Controls Seepage
Puddle Flange Waterproofing addresses the path where a pipe or sleeve passes through concrete. Because smooth pipe surfaces can create a direct interface through the structure, water may track along the outside of the penetration.
A projecting puddle plate interrupts that route and increases the path through the concrete. Consequently, it supports watertight details in walls, slabs, tanks, sumps and treatment structures.
However, the puddle flange does not replace construction-joint waterbars, external membranes, internal linings, pipe-joint seals or structural crack control. Instead, the designer must coordinate every waterproofing component as one system.
Stops the direct tracking pathFirst, the plate creates a physical obstruction around the embedded pipe or sleeve.
Works inside concreteNext, proper embedment lets concrete surround both plate faces and the complete circumference.
Complements other systemsMoreover, membranes, waterbars, sealants and pipe joints handle different leakage routes.
Requires inspectionFinally, pre-pour checks help confirm position, clearance, attachment and concrete access.
Puddle Flange Waterproofing Design Requirements
A reliable detail starts with the expected water exposure and the actual penetration geometry. Therefore, project drawings should define the following information.
| Structure | Concrete wall, slab, tank, basement, pit, sump or another water-retaining or below-grade element. |
|---|---|
| Water exposure | Stored water, groundwater, hydrostatic head, intermittent wetting or process-liquid exposure. |
| Pipe data | Material, nominal size, actual OD, wall thickness or SDR and expected movement. |
| Puddle plate geometry | Outside diameter or width, radial projection, thickness, profile and pipe attachment. |
| Embedment position | Drawing-defined location within the concrete and required cover on both plate faces. |
| Concrete clearance | Space around reinforcement and embedded items for placement and consolidation. |
| Material compatibility | Pipe, plate, welding, bonding, gasket, coating and surrounding waterproofing materials. |
| Adjacent waterproofing | External membrane, internal lining, waterbar, joint sealant and termination details where applicable. |
| Inspection stages | Factory checks, pre-pour inspection, concrete review and specified water or pressure testing. |
| Repair access | Accessibility of exposed pipe joints, coatings and seals after construction. |
Design note: No universal plate size guarantees waterproofing. Instead, the responsible designer should establish the geometry from the structure, pipe, water head, reinforcement and project requirements.
Waterproofing Systems Around a Puddle Flange
Each system component controls a different route or junction. Consequently, the project should avoid treating them as interchangeable.
Waterproofing Membrane Interface
An external membrane protects the concrete surface. Moreover, its penetration termination needs an approved detail.
Waterbar and Puddle Flange Coordination
A waterbar controls leakage at a concrete joint rather than at the pipe surface. Therefore, coordinate it separately.
Waterproof Pipe-Joint Seal
Gaskets, flanges, couplings or welded joints control leakage through the connected pipeline itself.
Review related guidance for concrete wall penetrations, slab penetrations and coordinated sealing systems.
New-Build and Retrofit Waterproofing Options
New concrete and existing structures require different penetration strategies. Therefore, identify the construction condition before selecting the product.
Cast-In Fixed Assembly
For new work, a fixed puddle plate can arrive attached to the pipe at the drawing-defined location.
Adjustable Cast-In Type
Alternatively, an adjustable puddle flange may provide approved positioning flexibility before concrete placement.
Split or Loose Arrangement
For existing pipes, a loose or split puddle flange may suit restricted-end-access conditions.
Cored-Hole Retrofit Detail
A retrofit penetration may require an engineered annular seal, grout, membrane termination and movement detail in addition to any water stop.
Retrofit note: Do not assume that a cast-in puddle flange detail can be reproduced after the concrete has cured. Instead, use a retrofit system designed and approved for the existing opening.
Puddle Flange Waterproofing Installation Sequence
Correct installation protects the designed water-stop path and reduces the risk of voids beside the plate.
Review the Detail
First, confirm pipe size, plate geometry, embedment, water side, joints and membrane interfaces.
Inspect the Assembly
Next, check the pipe, plate, attachment, coating, cleanliness and protective covers.
Coordinate Reinforcement
Then, maintain the specified clearances from bars, waterbars, joints and other embedded items.
Set and Support
Use rigid independent supports to hold line, level and plate position during the concrete pour.
Place and Consolidate Concrete
Afterwards, fill both plate faces and the complete circumference without moving the pipe.
Inspect and Test
Finally, complete the specified curing, waterproofing interfaces and water or pressure tests.
Puddle Flange Waterproofing Risks and Quality Checks
Most failures relate to incomplete design coordination, poor installation or damage rather than the product name alone. Accordingly, inspect these conditions.
Waterproofing Failure from Concrete Voids
First, inadequate clearance or consolidation can leave voids beside the plate and weaken the intended barrier.
Incorrect Water-Stop Position
Next, a misplaced or tilted plate can conflict with cover, reinforcement and membrane terminations.
Damaged Attachment or Coating
Moreover, construction handling can damage joints and exposed protective finishes.
Uncoordinated Pipe Movement
Finally, settlement, thermal movement or external pipe loads can stress the penetration and connected seals.
For broader building-envelope context, project teams can consult the WBDG waterproofing guidance. However, the approved local design and project specification must govern the work.
Puddle Flange Waterproofing Applications
Projects use embedded water stops wherever a pipe crosses a concrete boundary exposed to water. For example, applications include:
- Water tanks, reservoirs and treatment structures
- Basement and retaining walls
- Below-grade slabs and foundations
- Sumps, pits, chambers and manholes
- STP, ETP and wastewater structures
- Fire-water tanks and pump rooms
- Tunnels, shafts and utility penetrations
Additionally, review water-tank penetrations, fire-water tank puddle flanges and drain applications.
Puddle Flange Waterproofing RFQ Checklist
To review the product and waterproofing interface, send these details:
- Structure type and penetration drawing
- Water side, expected head and service liquid
- Pipe material, actual OD, wall thickness or SDR
- Puddle plate OD or width, projection, thickness and position
- Concrete thickness, cover and reinforcement arrangement
- Fixed, adjustable, split or retrofit installation condition
- External membrane, lining, waterbar and joint-seal details
- Pipe-end connections and expected movement
- Coating, inspection, testing and documentation requirements
- Quantity, delivery location and construction schedule
Puddle Flange Waterproofing Frequently Asked Questions
How does a puddle flange support waterproofing?
Its projecting plate interrupts the direct path along the pipe-to-concrete interface. Consequently, water must follow a longer route through the concrete.
Does a puddle flange replace a waterproofing membrane?
No. A membrane protects a surface or junction, while the puddle plate addresses the embedded pipe interface. Therefore, many projects need both.
Can puddle flanges be used in walls and slabs?
Yes, when the approved design coordinates plate dimensions, concrete cover, reinforcement, pipe support and water exposure.
Can installers add a puddle flange after concreting?
A conventional cast-in product cannot simply be added inside cured concrete. Instead, existing penetrations require an approved retrofit sealing detail.
What causes leakage around a puddle flange?
Possible causes include concrete voids, cracks, damaged attachments, incompatible materials, pipe movement or leakage from the connected pipe joint.
How large should the puddle plate be?
The designer should determine its projection and thickness from the pipe, structure, water head, reinforcement and project requirements.
What information is needed for a quotation?
First, send the pipe and concrete data. Then, include the plate geometry, installation condition, waterproofing interfaces, tests, quantity and drawing.
Request a Puddle Flange Waterproofing Quote
Send Mesta Inc. your pipe dimensions, puddle plate details, material, drawing, quantity, inspection scope and delivery requirements. Then, our team will review the enquiry and confirm the appropriate manufacturing scope.
